Content inspector for PDF

In iCalamus, you can place PDF content in frames. The Content inspector offers the following functions for editing PDF:

URI

If the content of a frame is a PDF, it has a URI ('Uniform Resource Identifier'). The relevant path is shown here in the Content inspector. Even URLs (this means internet-based URIs) are possible!
A click on the OK symbol reloads the frame content. This is recommended e.g. when the original PDF has been updated on your hard drive and you want to synchronize it in the document without complex import actions.
If the original PDF file has been moved or deleted, a red symbol indicates that the PDF URL has been changed.

When you click on the red symbol, you can update the PDF URL, or assign a new PDF to the frame.

Opacity

Each PDF frame has an adjustable opacity from 0% to 100%. Adjust it by entering the desired numeric value or move the slider with the mouse.

Show page

Here you can define which PDF document page shall be shown as an image in the current frame.

Blend mode

Here you can define how the PDF frame will be blended with the background. Blend mode is described in detail at the end of the Inspectors chapter.

Additional functions

Click on the action symbol in the bottom left corner of the Content inspector to access additional functions.

Edit PDF

When you have placed a PDF, you can remove single pages from it. You can also copy the text from single frames, or from the whole PDF, onto the System Clipboard to use it e.g. in a text frame.

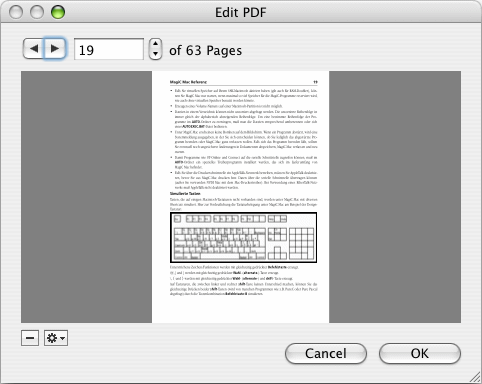

In this window you can quickly browse the PDF and remove the currently shown page from the PDF with a click on the [–] button in the bottom left corner. (The original PDF will not be changed though.)
Click on the action symbol in the bottom left corner of the Edit PDF window to access additional functions.

Copy Text of Page

Choose this menu item if you want iCalamus to copy all of the text it could recognize on the current PDF page, onto the System Clipboard for further use.

Copy Text of Document

This menu item copies the whole text of the whole PDF onto the System Clipboard for further use.

Remove Page(s)

If you want to remove multiple pages at once from the imported PDF, choose this menu item. A dialog opens where you can enter the page range which you would like to remove.

---

Create Opacity Based Outline

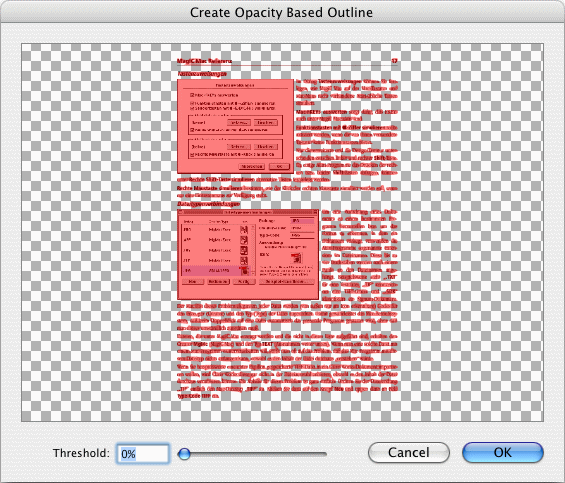

If the PDF in the selected frame contains transparency information, you can create an outline using this function. Then use the outline for PDF clipping, text wrap or other layout purposes. When you choose the function, the following dialog opens:

The red tinted area which is shown in the preview, is above the threshold which can be set at the bottom of the dialog. A threshold of 0% creates an outline that clips only the white parts. A threshold of 100% does not create any outline at all.

---

Open with Finder

When you choose this menu item and the image is a local file (URI), it will be opened in the Finder. This means the Finder launches the relevant application which is responsible for handling PDF files. The application then loads and shows the PDF.
If the image is an internet file (URL), will be opened and shown in the preferred Internet browser.

Reveal in Finder

Local PDF files will be shown in their directory in the Finder.

Adjust PDF proportional to frame size

To the right of the action symbol there is a tiny frame symbol. When this symbol is tinted red, it informs you that the frame content is currently not shown in its original proportions. With a click on the icon you can adjust the frame content proportionally to the current frame size.
