[Ten rozdział nie został jeszcze przetłumaczony.]

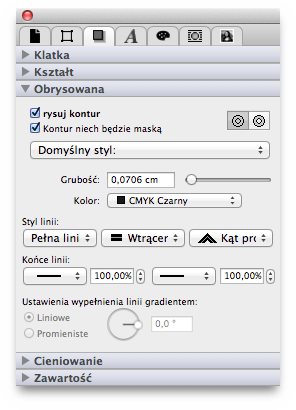

When you check this box, the outline of the frame shape will be drawn. This checkbox isn't activated in several frame types (e.g. text frames) but can be changed at any time afterwards. If the shape will be drawn itself too, depends on the settings in the 'Shape' section of the Frame inspector.
This checkbox is very important as it activates the cool mask methods in iCalamus. The outline of a frame will only be used as a mask when this box is activated (checkbox checked). If there is more than one path in the shape, you can define if an inner mask should be used, too.
If objects have at two vector paths, the very right selector defines if the inner path should be used as a mask too, masking the background, or if it should rather be drawn as a line.
Define here the thickness of the outline by entering a numeric value or moving the slider.
In the very left menu you define the line stroke style itself.
You can choose between different styles from solid
,
dotted
, dashed
up to combined line stroke styles.
The menu right to the line stroke style menu defines, how the ends of line stroke parts shall be drawn.
The following menu defines how line stroke corners shall be drawn. There are three different types: Miter, round, bevel.
You can assign different symbols to line start and line end, e.g. to realize arrows or technical layouts.
You can define the size and type of the line start symbol in the left section, and the size and type of the line end symbol in the right section.
This parameter group can be selected only when you have assigned a gradient as outline color (in the Paleta Kolor). Then you can define here how the gradient shall draw the outline. You can define a rotation angle and choose between a linear or radial gradient.
